LoRaWAN Gateway Overview
The Safora LoRaWAN Gateway is a pre-configured outdoor gateway based on the MikroTik LtAP LTE7 kit. It receives LoRaWAN uplinks from Fence Shield sensors or other LoRaWAN sensors and forwards them to the ChirpStack network server over LTE or Ethernet backhaul.
Key capabilities
- LoRaWAN coverage: up to 15 km (depends on terrain and setup)
- Pre-configured by Safora: no LoRaWAN technical setup required
- Dual backhaul: LTE (SIM card) or Ethernet
- Works with ChirpStack v4
- Expandable: add your own LoRaWAN sensors alongside Fence Shield devices
What's in the box

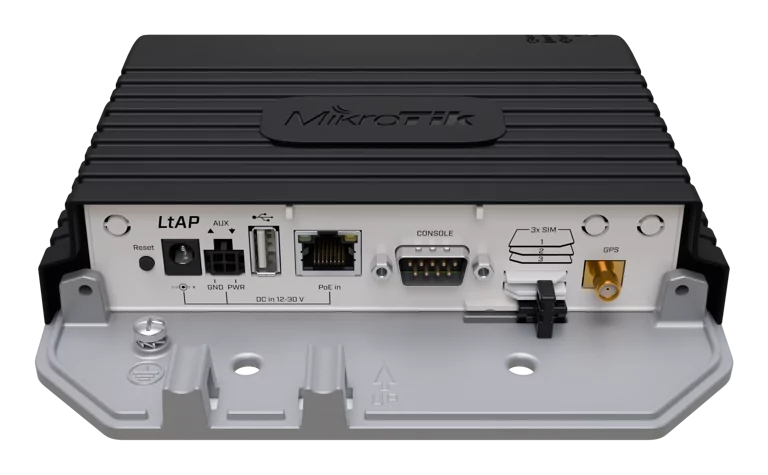

1× Configured LoRaWAN gateway (MikroTik LtAP LTE7 kit)

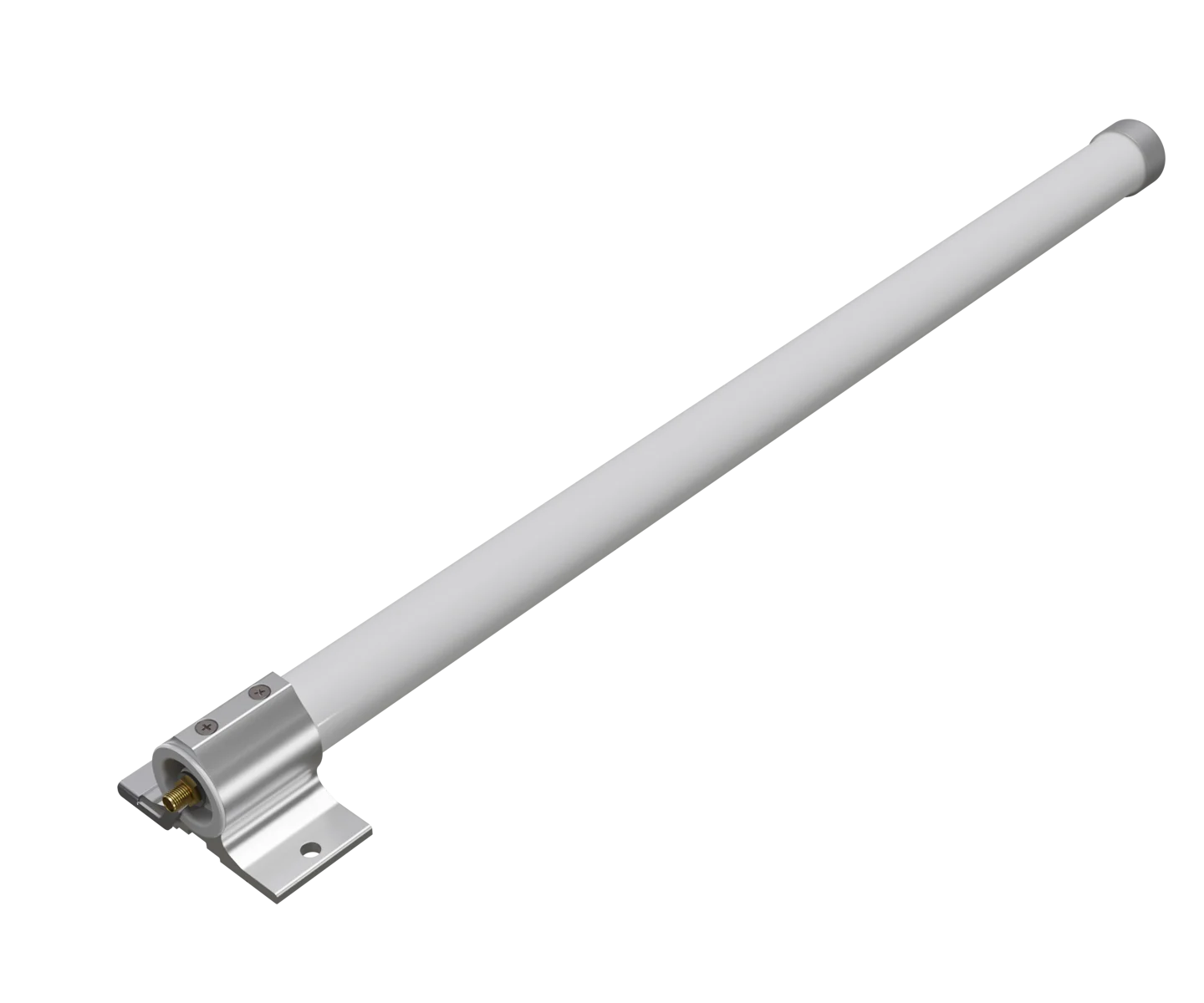

1× Omnidirectional antenna (868 MHz or 915 MHz)

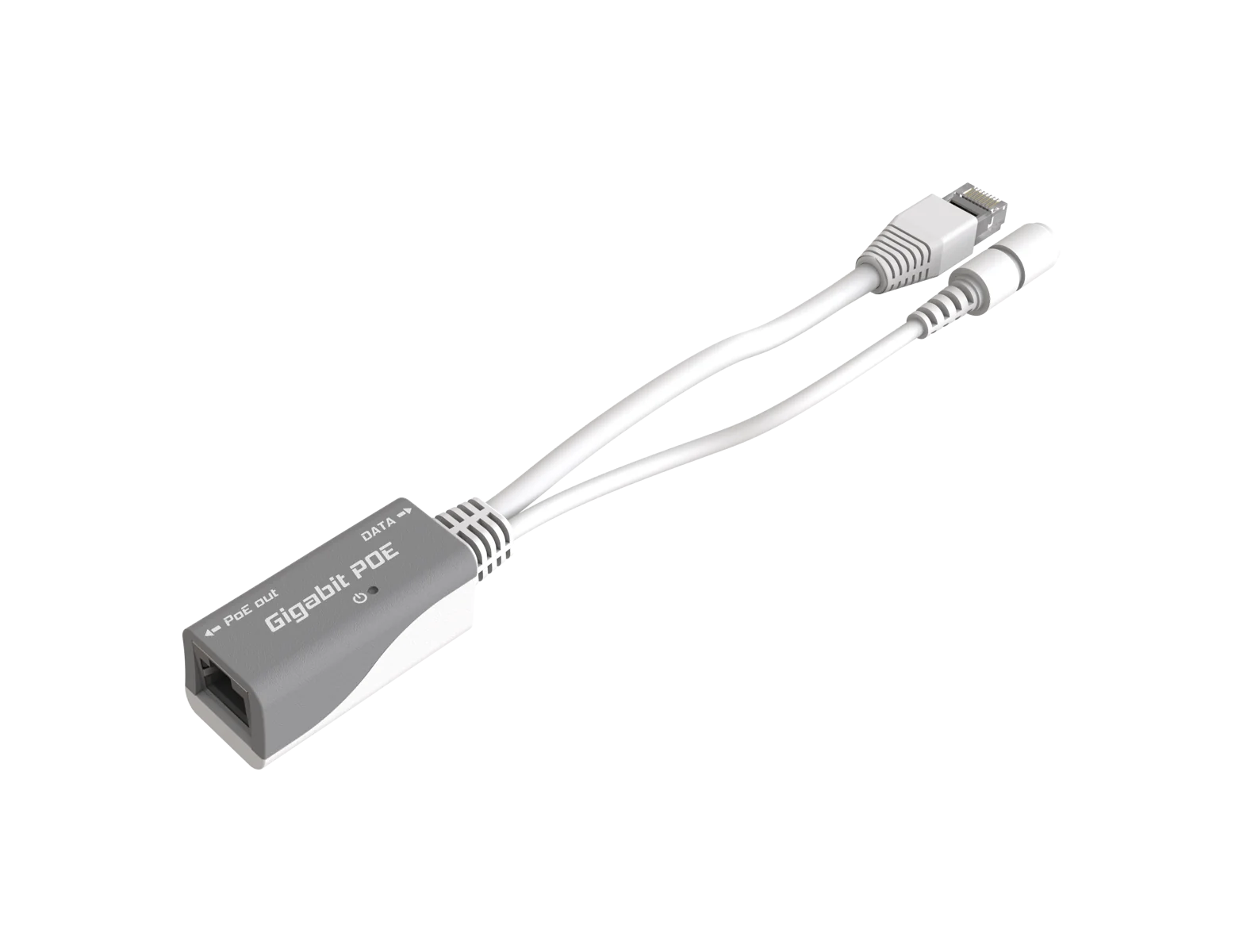

1× PoE injector

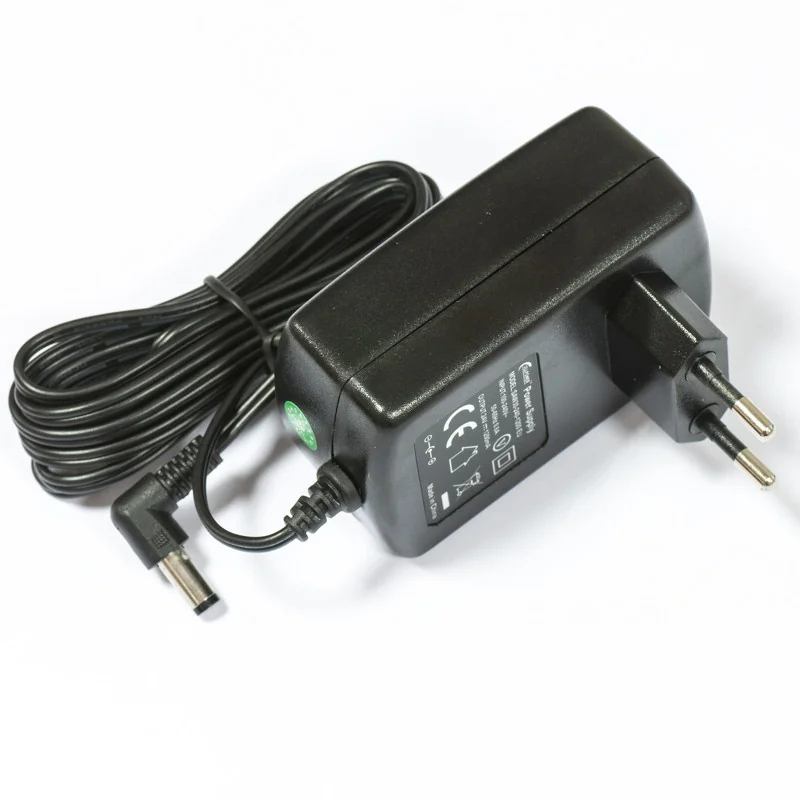

1× Power supply (24 V)

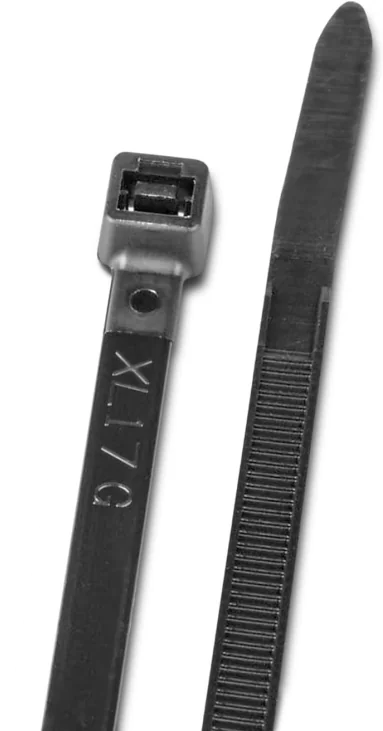

2× UV-proof zip ties for mounting

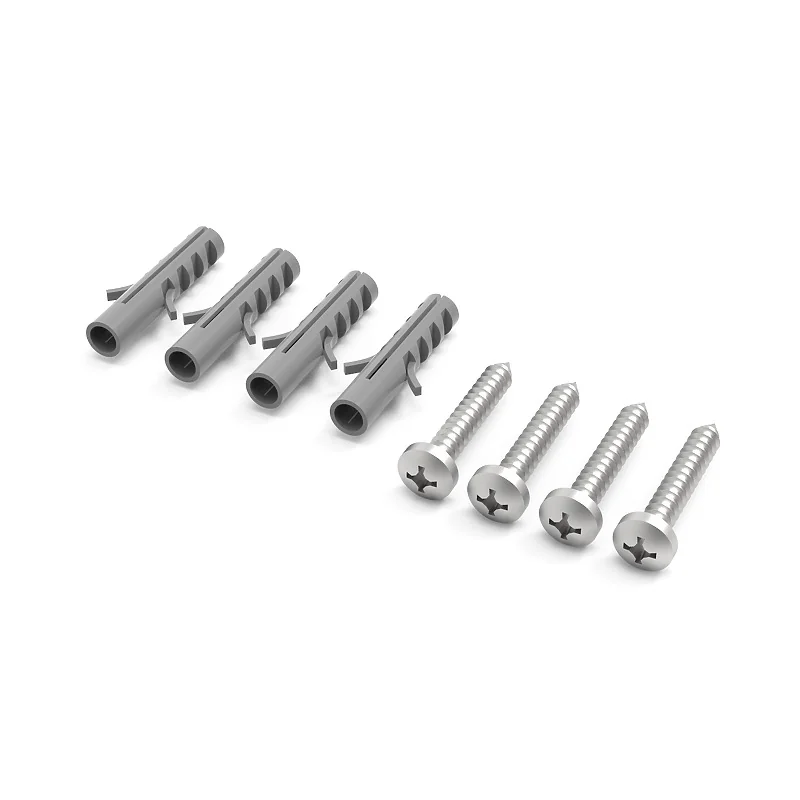

1× Fastening set (screws & wall plugs)

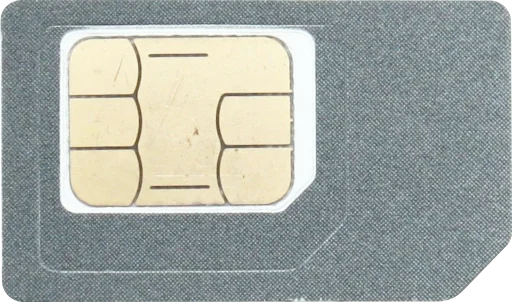

1× SIM card (with 1 year of data; SIM variant only)
Specifications
| Parameter | Value |
|---|---|
| Gateway model | MikroTik LtAP LTE7 kit |
| Dimensions | 170 × 162 × 40 mm |
| Weight | 980 g |
| Enclosure rating | IP54 |
| Operating temperature | −40°C to 70°C |
| Input voltage | DC 12–30 V (24 V adapter included) |
| LoRaWAN frequency | 868 MHz / 915 MHz |
| LTE FDD bands | 1, 3, 5, 7, 8, 20, 28, 32 |
| Backhaul | LTE or Ethernet |
