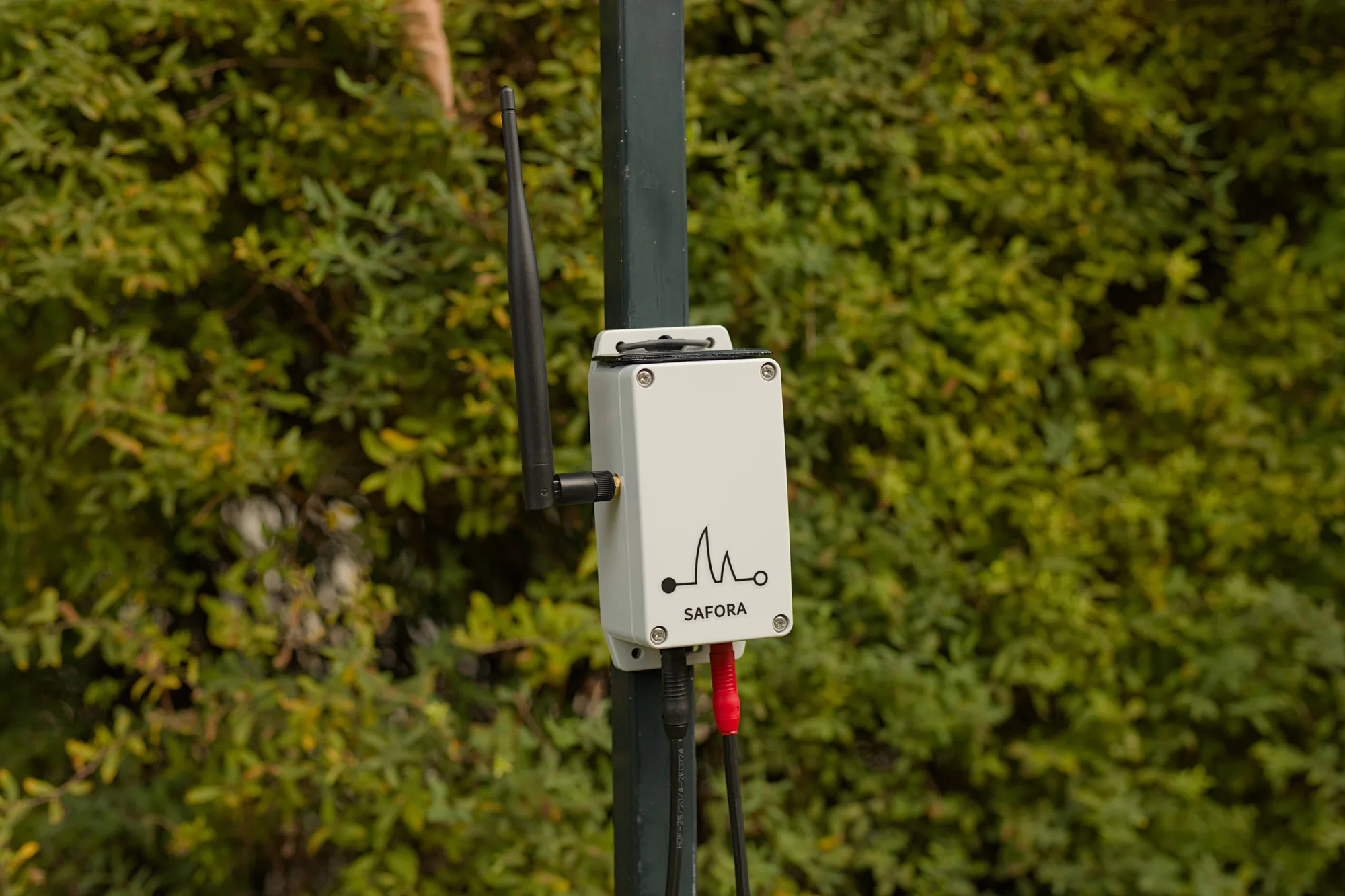

Fence Shield Overview
The Safora Fence Shield is a solar-powered LoRaWAN sensor that monitors electric fence voltage 24/7. It detects cuts, voltage drops, short circuits, and tampering, then sends alerts to the Safora dashboard or mobile alerts within seconds.
Key capabilities
- Fence fault detection: cuts, voltage drops, short circuits
- Tamper and theft detection: movement or interference with the device
- Sub-minute alert latency: under 60 seconds from fault to notification
- Hourly telemetry updates: regular voltage and health readings
- Solar-powered: integrated panel and LiFePO4 battery
- LoRaWAN connectivity: up to 15 km range (depends on setup and terrain); no SIM card required at the sensor
- Energizer compatibility: works with a wide range of electric fence energizers; configurable voltage thresholds per deployment
- Network compatibility: compatible with existing LoRaWAN networks as well as Safora-provided LoRaWAN gateways
What's in the box

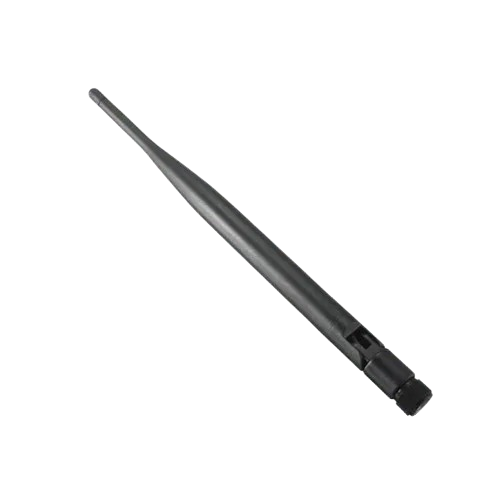

1× Fence Shield unit (solar panel, battery & antenna integrated)
2× Cables for fence connection

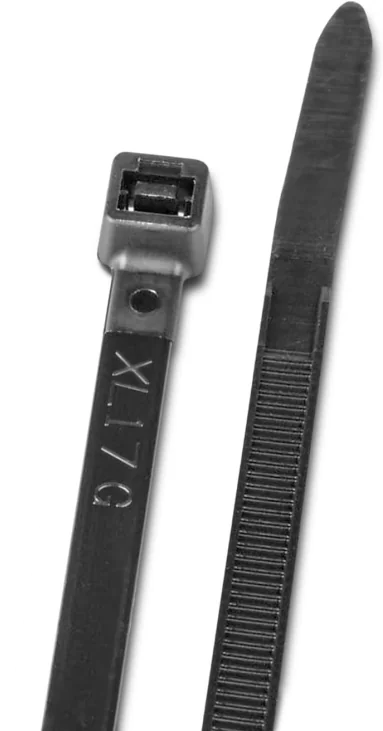

2× UV-proof zip ties for mounting
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 115 mm × 65 mm × 55 mm |
| Weight | 240 g |
| Mounting | UV-proof zip ties (included) |
| Autonomy (no charging) | 7 days normal operation |
| Battery type | LiFePO4, rechargeable |
| Supported frequency plans | EU863-870, US902-928, AU915-928, AS923-925 |
| Measurement interval | 1 minute |
| Maximum energizer voltage | 12 kV |
| Recommended device spacing | ~1 km along the fence line |
For the full datasheet and other downloads, see Files & Resources.
